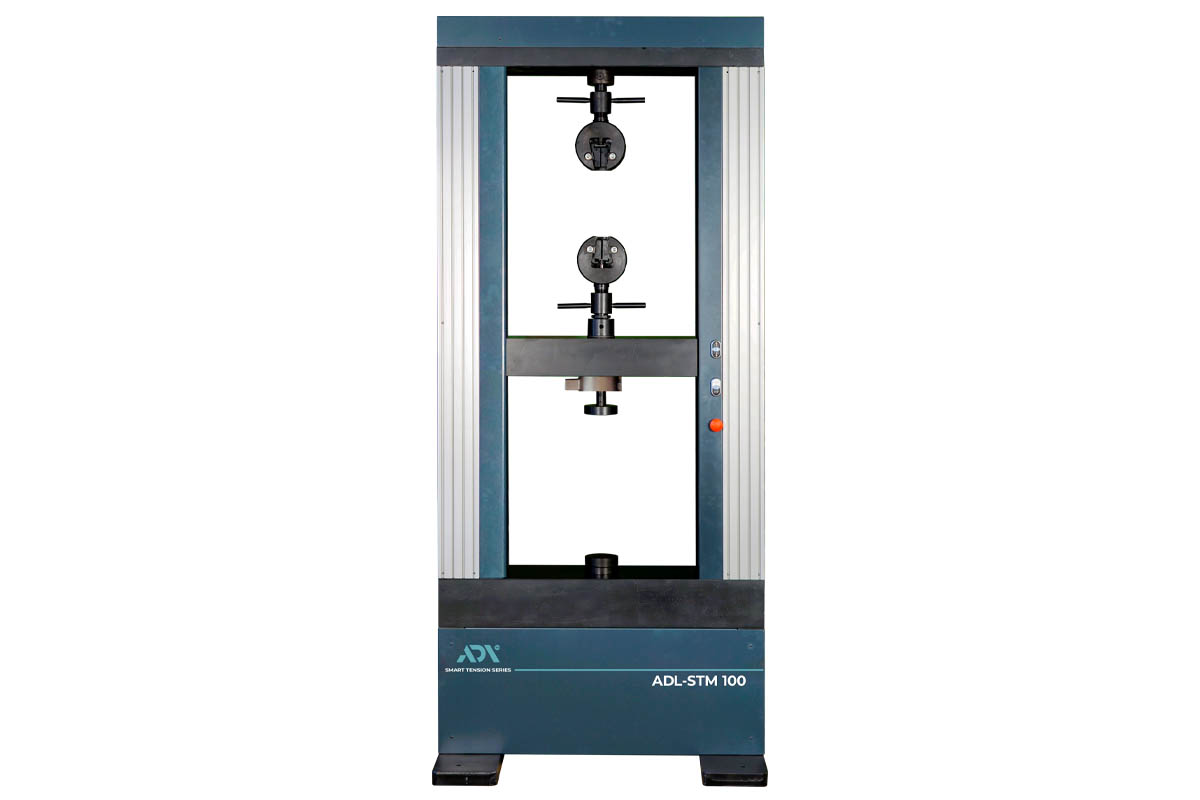

Servo Testing Machine ADL-STM050/300 is a servo driven floor type tester for testing at medium to high loads.
GOST, GB, ASTM, DIN, ISO, etc. on hardened and non-hardened steels, cast iron, non-ferrous metals and soft bearing alloys. applies tensile and compression tests according to test standards.
It is capable of testing non-standard samples according to various standards and methods, as well as according to an individual program described by the user.
The accuracy of the loading process is ensured by the design of the power frame of the machines and the precision machining of the ball screw assemblies.
Test machines are equipped with high quality components: Zemic sensors, Delta servo drives, Autonics encoders, Seasam gearboxes.

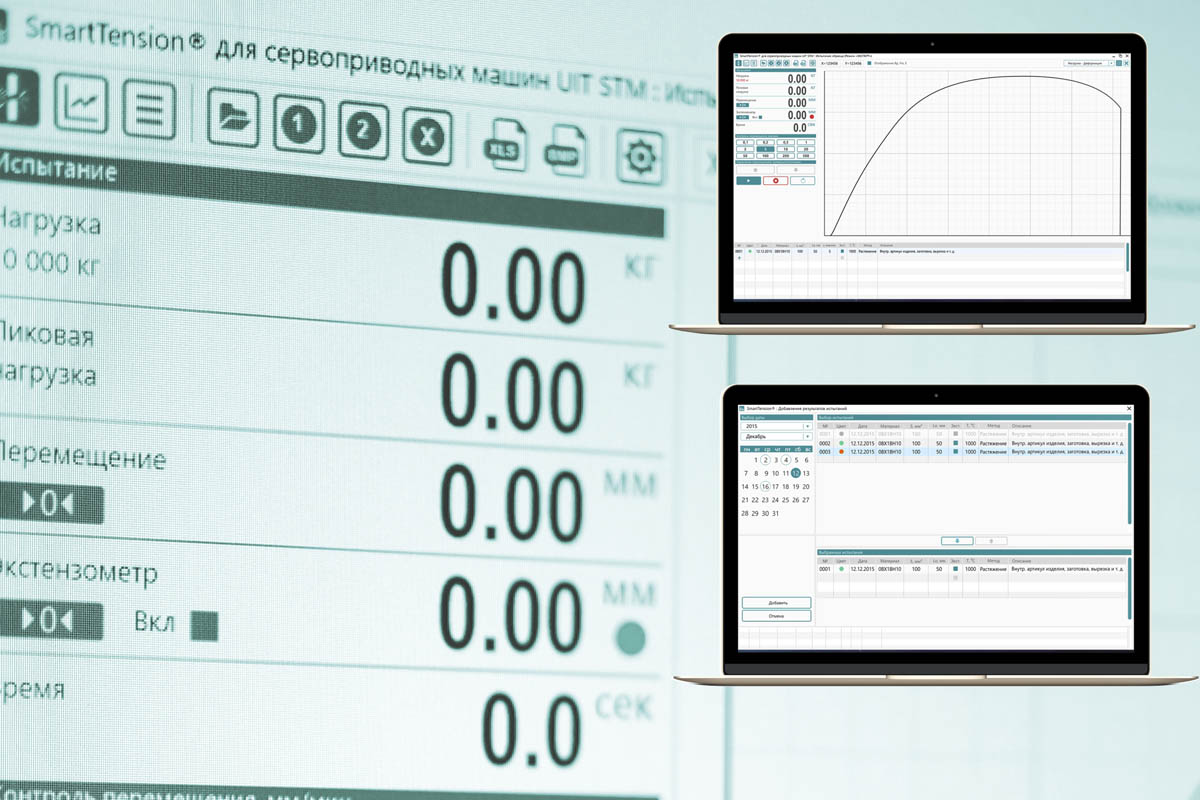

Protection against operator errors. The test is controlled from a computer. The main control buttons are located on the machine panel.
If necessary, our experts will design and manufacture all types of holders and devices to order for your specific task!
The universal testing machines of the servo-driven testing machine ADL series are equipped with clamps and other testing equipment:

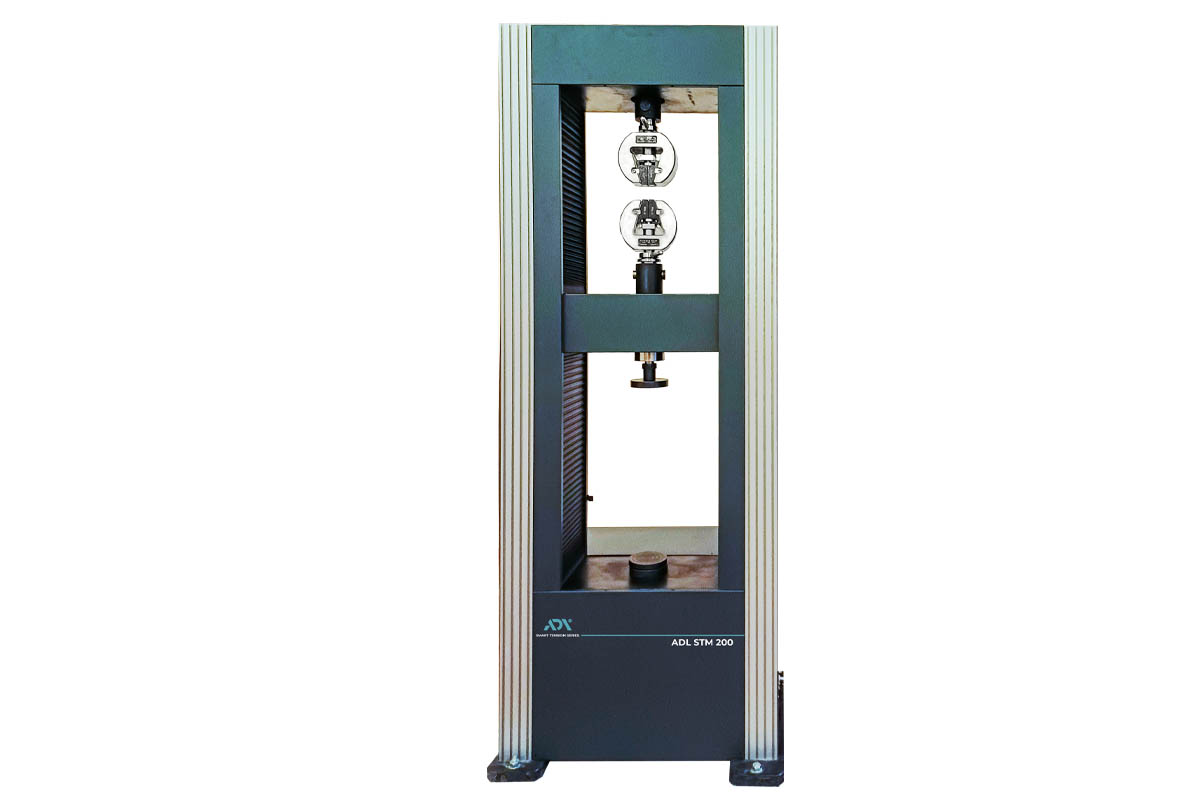

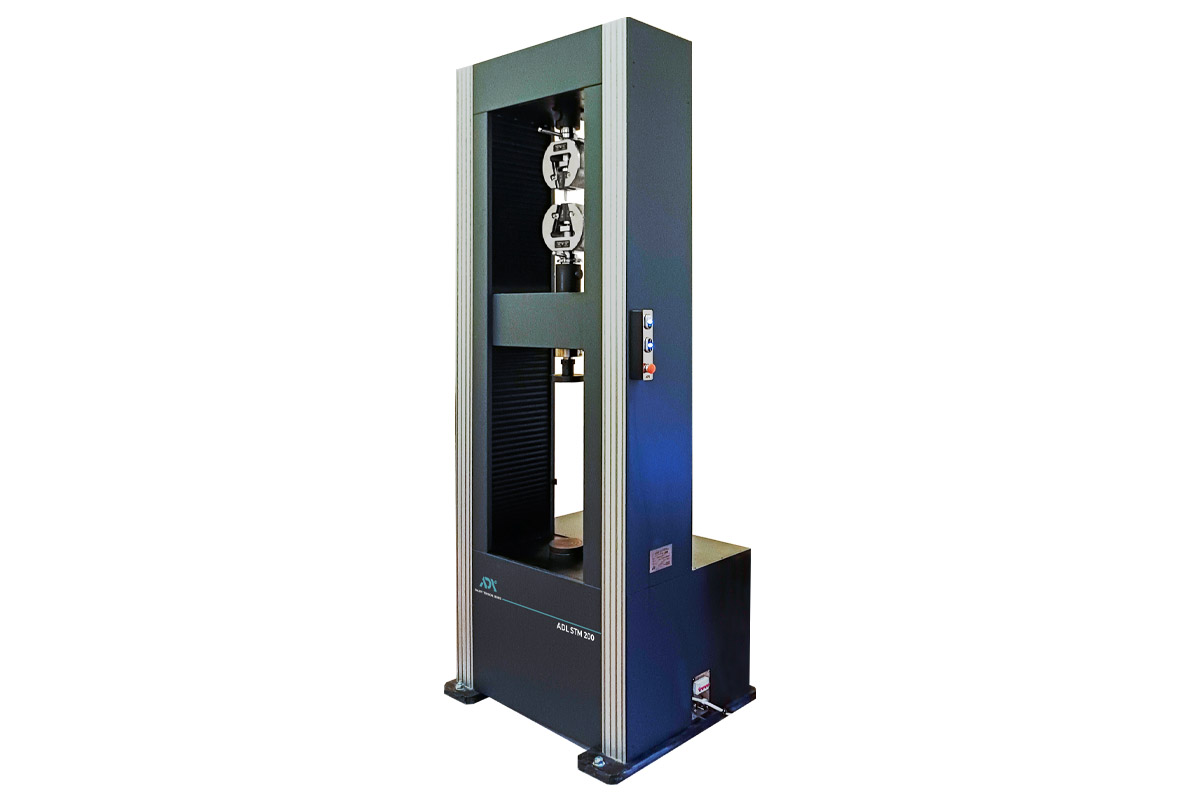

| Model name | ADL-STM50 | ADL-STM100 | ADL-STM200 | ADL-STM300 |
| Maximum load, kN | 50 | 100 | 200 | 300 |
| Load measurement accuracy,% | 1 (up to 0.5 on average) | |||
| Travel speed, mm / min | 0.005 – 500 | |||
| Cross-movement resolution, mm | 0.001 | |||
| Power frame stiffness, kN / mm | 250 | 300 | 400 | 600 |
| Power supply | 380 V, 50 Hz | |||
| Maximum power consumption, kW | 1.5 | 1.5 | 3 | 5 |
| Test area, mm | 600×575 | 600×600 | 600×600 | 600×575 |
| Overall dimensions of the machine, mm | 945x654x2176 | 1010x750x2210 | 1100x770x2558 | 1110x785x2525 |
| Power frame weight, kg | 700 | 1100 | 1560 | 2000 |
| Brand | Adelix |
|---|
