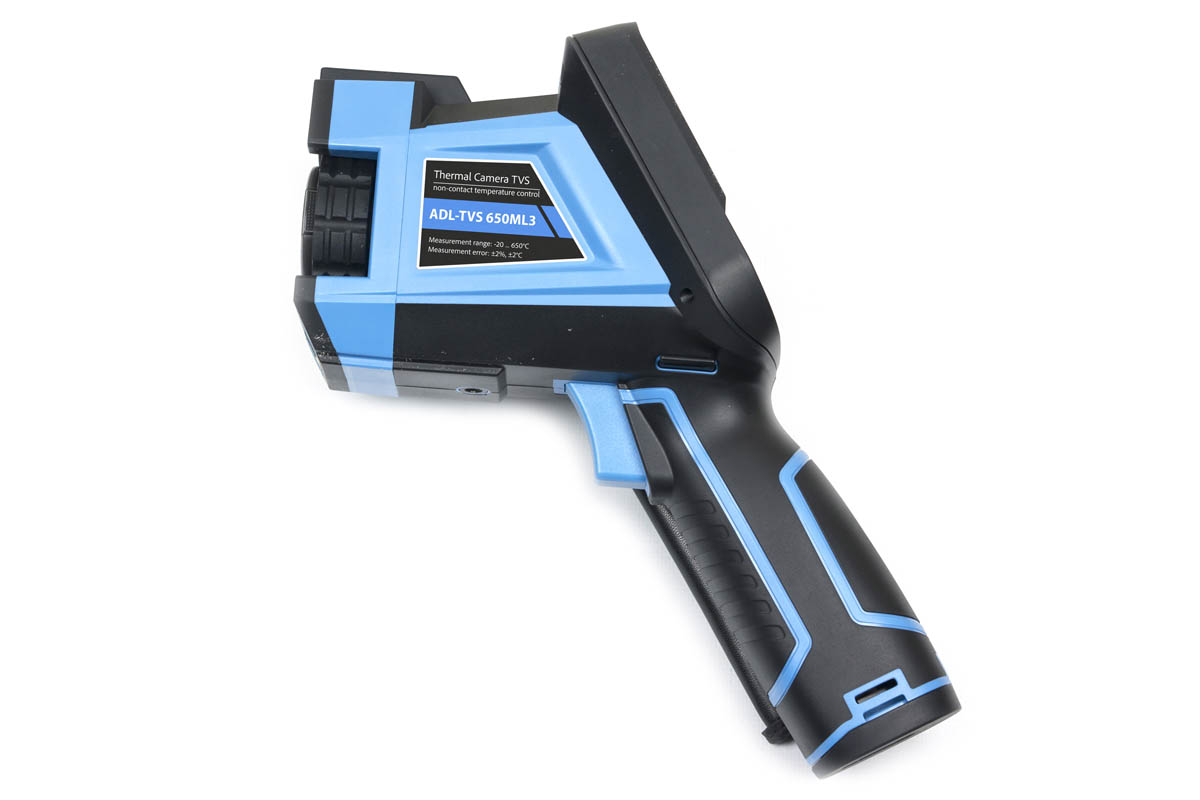

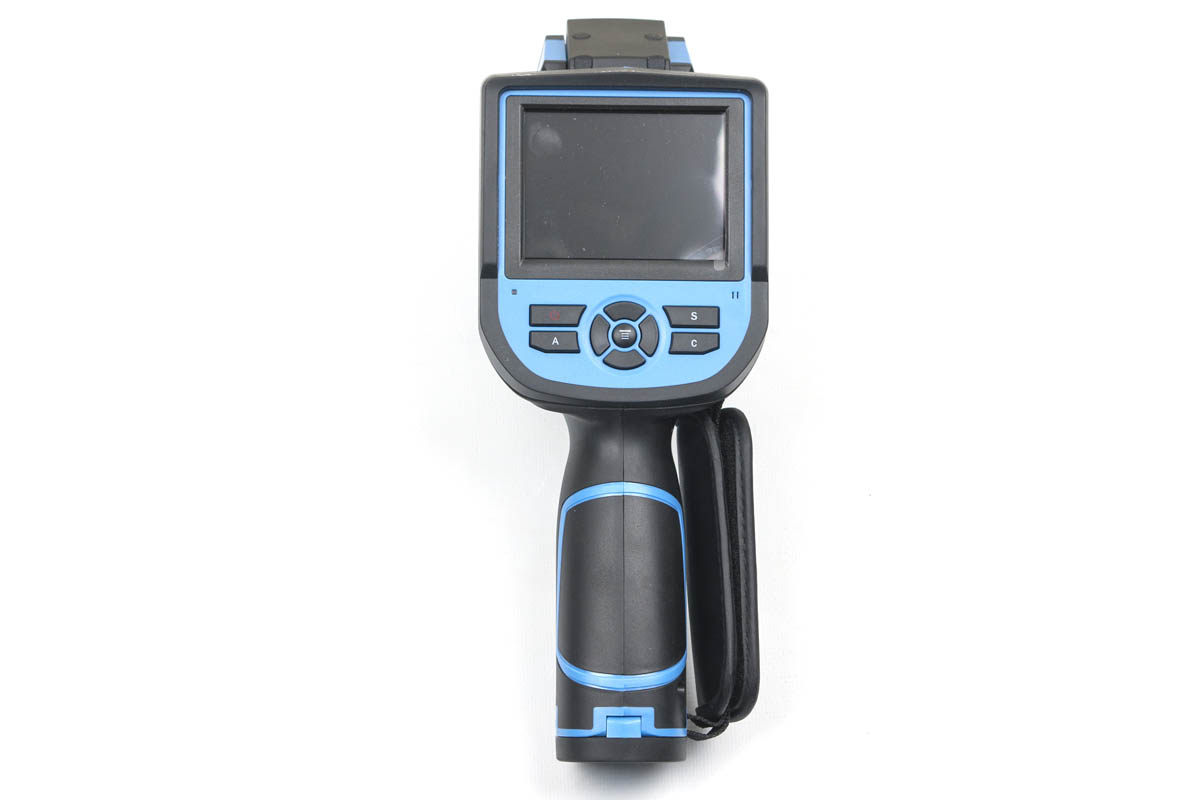

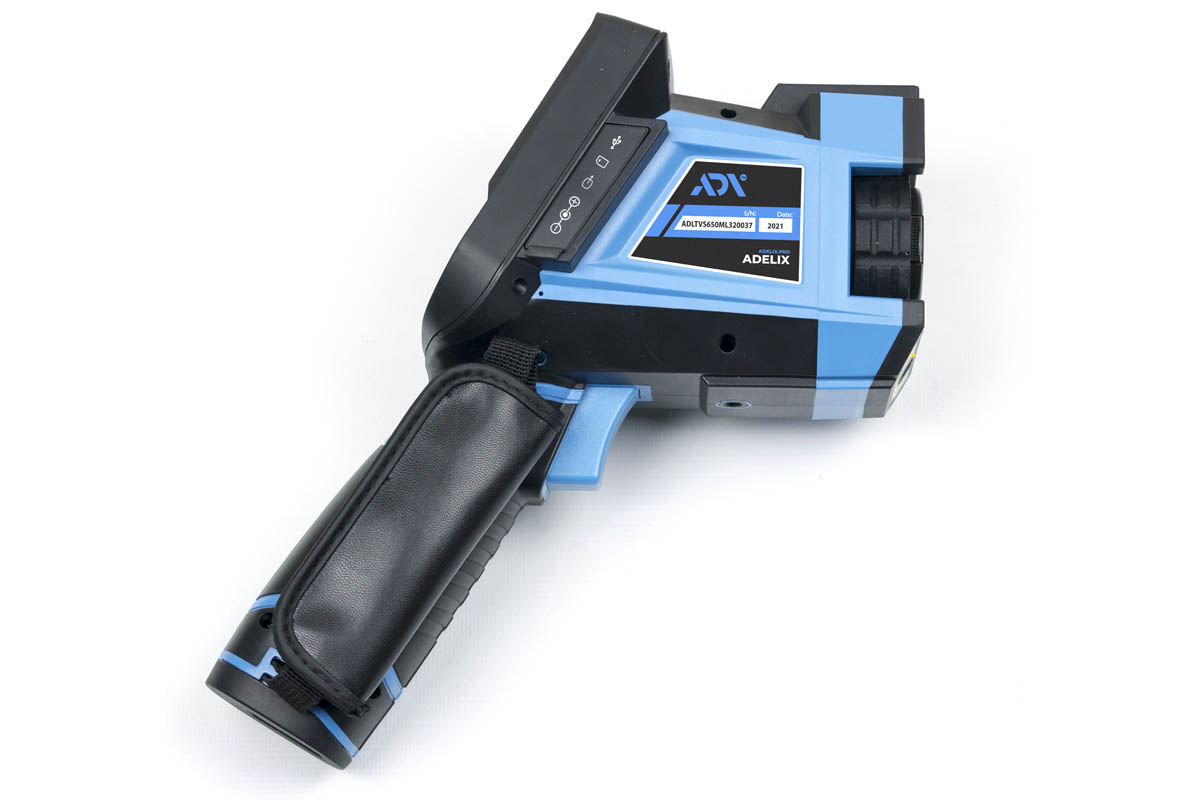

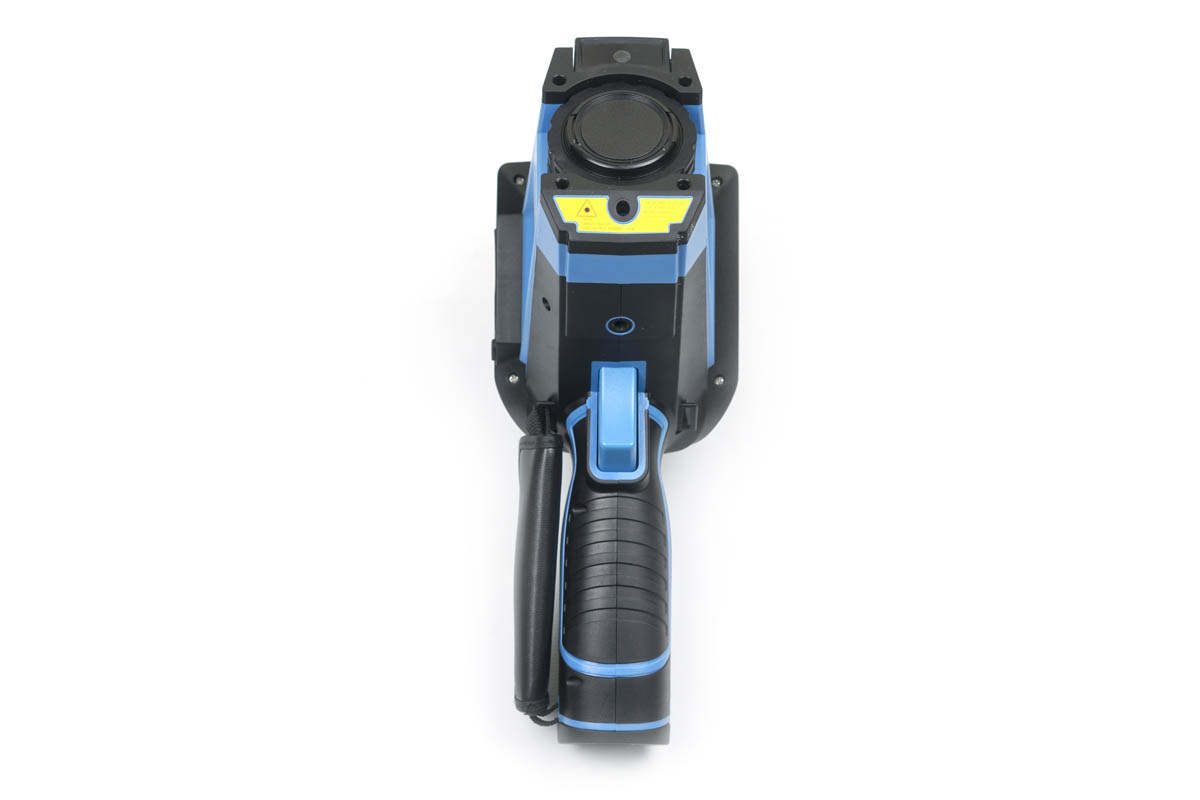

Thermal Imager ADL TSI-650ML3

In the design of the ADL TSI-650ML3 thermal imager, a 384 x 288 matrix is used, which allows a more detailed and accurate examination of the thermal control object under consideration.

Category:
Description

In the design of the ADL TSI-650ML3 thermal imager, a 384 x 288 matrix is used, which allows a more detailed and accurate examination of the thermal control object under consideration.

A feature of the model is its high build quality and improved equipment.

The design features of the ADL TSI-650ML3 thermal imager protect the most critical components of the device from damage in the event of a drop.

The device can withstand drops of up to 2 meters.

Main Features:

  • High thermal sensitivity and wide viewing angle for user comfort.
  • Automatic calibration system for temperature, atmospheric conditions and emissivity of the objects under investigation.
  • Automatic determination of maximum, minimum and average temperature values.
  • USB interface for connecting the device to a PC.
  • Ability to save SD card scan thermal images in JPEG format and save up to 60 seconds of recording and audio files.
  • The ADL TSI-650ML3 thermal imager has the ability to select the language in the user menu.
  • 11 palettes for visualization of thermal images.
  • Case made of impact and temperature resistant plastic.
  • These features make the ADL TSI -650ML3 thermal imager an indispensable aid in scientific research and production control.

Usage areas

Energy:

  • Monitoring of connections and transmission elements
  • Control of conversion and distribution elements

Research activities:

  • Measuring the temperature distribution
  • Temperature measurement analysis
  • Estimation of temperature difference

Building:

  • Underground heating system
  • Insulation violation
  • Quality control
  • Tightness of windows
  • Radiators and pipes

Delivery Set:

  • Infrared Thermal Imaging Device
  • Connection Cable
  • Li-Ion Battery, 2 Pieces
  • User Manual
  • Lens Cap
  • Micro-Sd Memory Card
  • Micro-SD Memory Card Adapter
  • USB Cable
  • Audio Cable
  • Carrying Bag
  • Batteries Charger
  • Sun Protective Pad
  • Infrared Analysis Software, Usb Flash Drive

Özellikler

ParameterInformation
Temperature Range-20 ° С to 650 ° (up to 1000 ° with special lens) С
Measurement Error±7%
Matrix
Matrix Size384×288
Detector TypeFPA Uncooled Micro Bolometer
Spectral Sensitivity8 to 14μm
Thermal Sensitivity<0.06 °C at 30 °C
EmissivityCustomizable; 0.01 to 1.0; Step: 0.01
Optical
FocusManual Adjust
Angles25° X 19° / 0.1 M
Spatial Resolution1.36 Million
Visualization
ScreenColor, TFT, Diagonal: 3.5″ 640 X 480
Image TypesThermogram + Visible Image
Image Frequency50Hz / 6ohz
ScalingYes, 2 Floors
Languages11 User-Selectable Languages
Visible Camera
Internal Digital Camera1.3M, CMOS
BacklightYes
Analysis
Isothermal AnalysisYes
Measurement Marks4 Marks, 3 Fields, 2 Lines, Search MAX / MIN, Izoterm
Auto SearchMaximum, Minimum Temperatures
High Temperature AlarmAudible Color Alarm
Pallets11 Palettes
CalibrationAuto, Dec 60 Sec.
Data Storage and Documentation
Record FormatJpeg
Memory Capacity8GB SD Card up to Maximum 16GB
Memory TypeMicro SD
Audio DescriptionUp to 60 Seconds of Audio Recording for Each Image Saved with the Image
Goal Setting
Laser MarkerLaser Class 2.1 Mw / 635μm (Red)
Interface
External DC Power InputYes, 10-15V DC
Audio VideoYes
InterfacesMini-USB,SD
Wireless Transmission–
Feeding
Autonomous Power SupplyReplaceable Li-Ion Battery
External PowerDC: 12V
Working Conditions
Protection ClassIP54
Temperature Range– 25 ° С to + 60 ° С (Operation: -15 ° С to + 50 ° С)
Resistance to LoadsShock: 25g, IEC68-2-29; Vibration: 2G, IEC68-2-6
Overall Dimensions105x245x230 mm
Weight980 G
