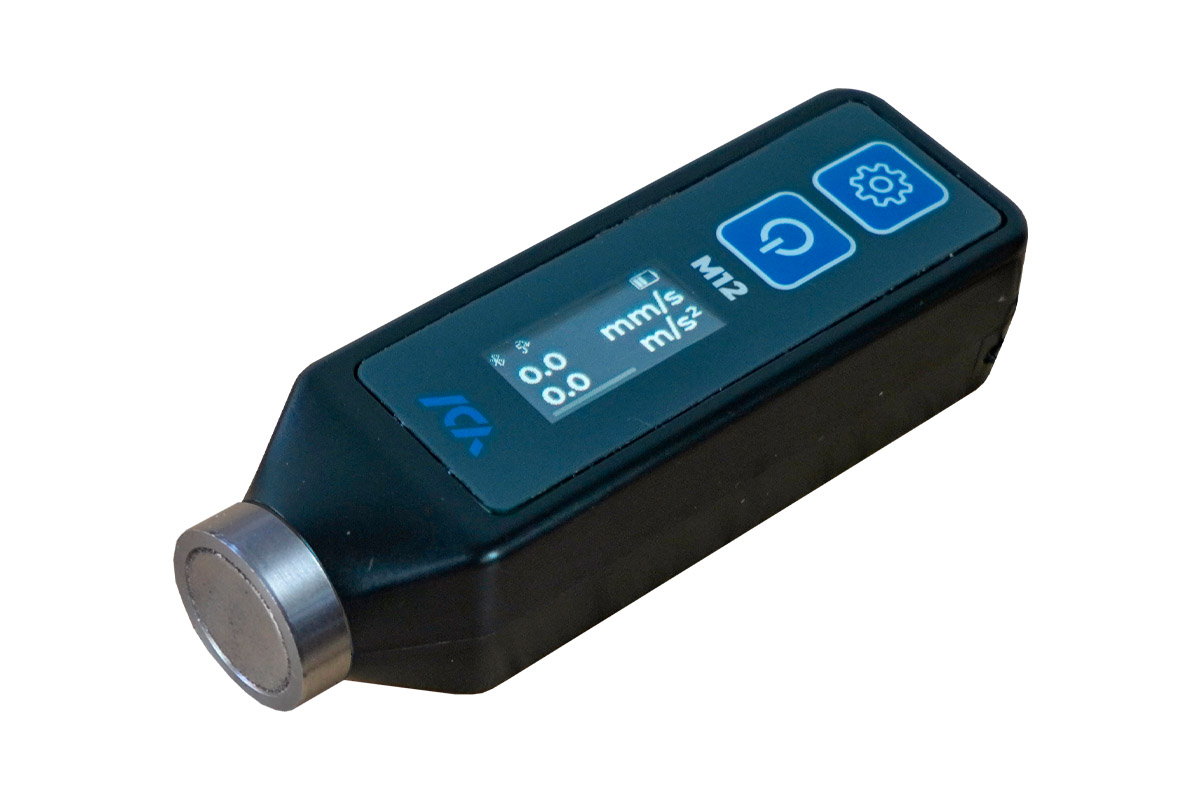

The ADL-M12 portable vibration meter is a simple and user-friendly diagnostic tool for monitoring vibration and solving problems related to the vibrational state of various industrial equipment.
The ADL-M12 vibration meter will help ensure uninterrupted operation and reduce costs for repairing and servicing industrial equipment by detecting wear and damage at early stages.
Classic vibrometer โ implies the use of the device as an indicator of the overall vibration level, measurement of peak values, displacement, or diagnosis of rolling bearings by peak factor. As a result, the device displays the current and averaged value. The duration of vibration value averaging can also be customized upon individual request.
This mode will be useful for daily monitoring of equipment: pumps, reducers, electric drives, and turbochargers, including both individual units of rotating equipment and the entire unit as a whole, which will provide a general understanding of the vibrational state of industrial equipment at the enterprise.
Lineman Assistant โย work of the servicing personnel along a specified route with data transmission to an external device. It is possible to connect to existing software or order individual software development.
The ADL M12 vibration meter is a portable assistant for vibration control that significantly improves the vibration monitoring process, making it extremely simple, convenient, and accurate!
| Parameter name | Value |
| RMS value of vibration velocity | 0.01โ200mm/s |
| Peak value of vibration acceleration | 0.1โ200 m/s2 |
| Peak-to-peak | 2-2000 ยตm |
| Frequency range | 10-1000 Hz |
| Measurement error | +/-5% |
| Protection class IP sensor | ะะ 54 |
| Sensor power supply | Li-Pol battery, 3.7 V; 370 mAh |
| Battery life depending on the intensity of work | 4 - 8 h. |
| Battery Charging Connector | USB Type-C |
| Charging time, h | 1,5 |
| Operating temperature range | -10 to +55ยฐ C |
| Humidity, % | 85 |
| Overall dimensions (with magnetic fastening), mm | 30ั 28ั 90 |
| Screen type, size, mm | OLED, 0,91’’ |
| Brand | Adelix |
|---|
ADELIX is an international company headquartered in Ankara, Tรผrkiye. It specializes in the design and manufacture of equipment for mechanical testing, chemical analysis, non-destructive testing of materials and products, as well as for the diagnosis and control of units.
The company's team effectively solves both standard and individual client tasks. First of all, it provides technical support during the formulation of a technical problem, selection of equipment, methods of writing, and then training of personnel, as well as during the operation of devices. Project development, preparation of technical documentation, installation, installation supervision, full technical and metrological support of the laboratory.
