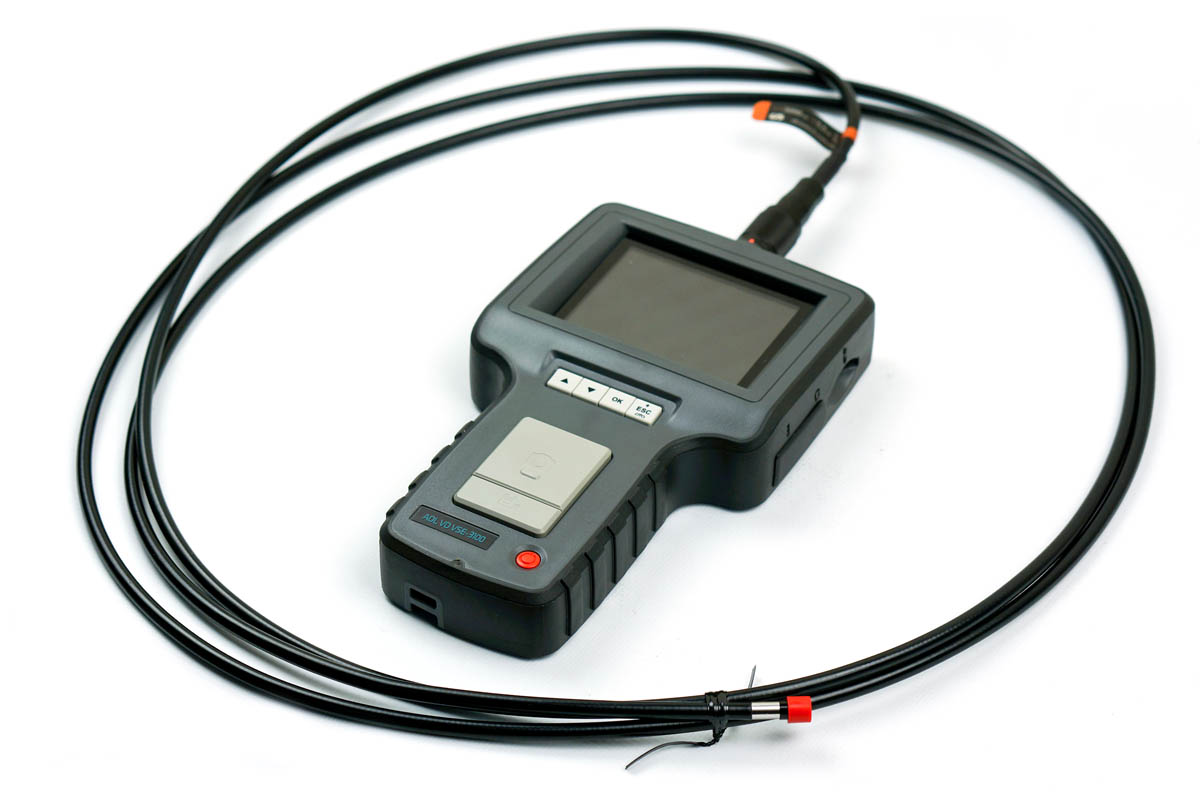

Video endoscope ADL VD VSE-3100

The ADL VD VSE-3100 is one of the most affordable and popular video endoscopes.

The device has a basic functionality that allows you to explore closed or inaccessible gaps of the equipment, record photos and videos of the results. The results of the research are saved on the SD card. Information about photos and videos can be displayed both on the device’s own screen and on an external TV.

The device allows you to zoom in, rotate or project images, control the brightness of the back light and delete unnecessary entries.

Steel braided and sheathed quick-change probe, built-in wiring for easy operation, provides reliable protection for flexibility and flexibility. The video camera is equipped with a 67 ° field of view lens with a sharpness range from 10 mm to infinity.

Additional corner attachments for the display expand the capabilities of the device. LED lighting with adjustable brightness allows you to set the optimal level of illumination in the area of interest, see details in shaded areas and avoid overexposure on reflective polished surfaces.
The device supports SD cards up to 32 GB, which allows you to store up to 100 hours of 640×480 MPEG4 video. The Li-Po battery provides up to 4 hours of continuous operation and is not subject to the”memory effect”.

On the sides of the ADL VD VSE-3100, under sealed polymer plugs, there are: a connector for connecting power and charging the battery, a mini-USB connector for connecting to a computer, a composite video output.

Specification:

Display	3.5″ TFT LCD QVGA, with protection against oil products and mechanical damage
Power supply	Li-Po battery 3.7 V, AC100 -240V 50-60Hz charger, Dc5. 5 1.8 A (Charging time: 2 hours)
Duration of work	4 hours
Video Standard	NTSC, PAL
Interface	AV, USB
Stunt	The focal length is 10 mm –
Memory	SD card (up to 16 GB)
Photo / video format	JPG/MPEG4
Photo / Video resolution	640×480
Frame rate	30
Viewing angle	67°
Probe	Steel wear-resistant quick-release 0 5.5 mm, length 3.0 m
Operating temperature	0°C…+55°C
Size	117.5 mm x 207 mm x 37 mm
Weight	388 gr

Brand	Adelix

ADELIX is an international company headquartered in Ankara, Türkiye. It specializes in the design and manufacture of equipment for mechanical testing, chemical analysis, non-destructive testing of materials and products, as well as for the diagnosis and control of units.

The company's team effectively solves both standard and individual client tasks. First of all, it provides technical support during the formulation of a technical problem, selection of equipment, methods of writing, and then training of personnel, as well as during the operation of devices. Project development, preparation of technical documentation, installation, installation supervision, full technical and metrological support of the laboratory.
